WIFI ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for Smartphone
Price:
$8.99
Sales:176
comment:0
Collection:0
Quantity:
Description
Reviews(0)
Shipping Terms: FOB China Item No.: Wifi ELM327
Type: OBD2 Plug & Play Specification: Plug & Play
Warranty: 1 Year Installation: OBD2 P&P

WIFI ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for Smartphone

ELM327 02.1.pngELM327 02.pngELM327 02.3.png

Description

Wifi 327 can be used on Iphone,Ipad and so on...

Wifi OBD VGATE Technical Specifications


SSID: CLK Devices

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 2.75 x 1.25 x 1.2 inches


Features:

CLK is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939


WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.


WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches.It comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.


Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

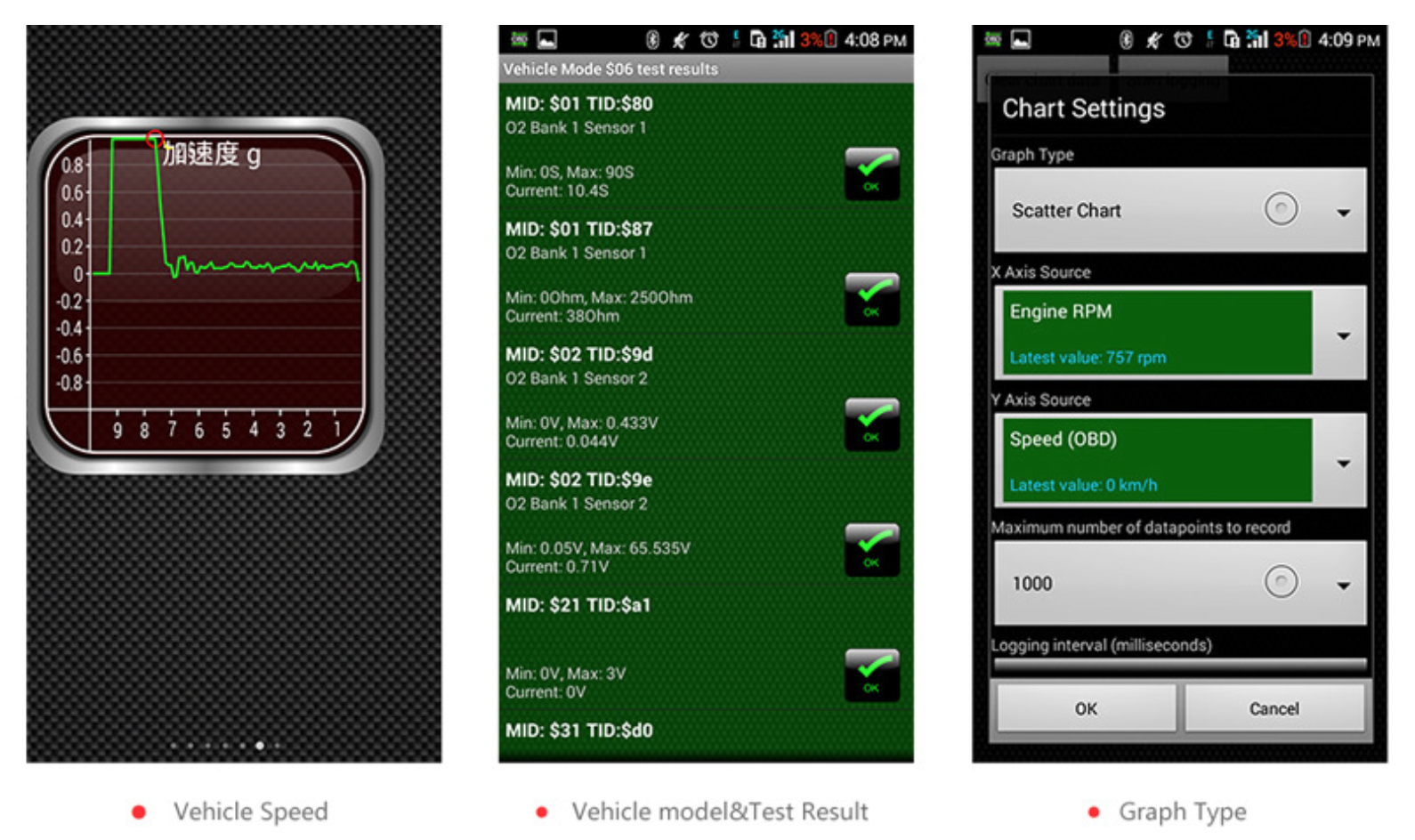

Following are Some of The Parameters Which Could be Read From the Vehicle:


Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim


Package:

1 x ELM327 WiFi Wireless OBD2 Interface

1 x Software CD
