HSD LVDS conversion cable
Shipping Terms: FOB China Warranty: 1 Year
Samples Availability: Yes extra 30% sampling fees

HSD LVDS conversion cable

This connector was widely utilised in communications, automotive, electronic warfare, military navigation, radar, aviation and other electronic equipment in the transmission of radio frequency signals.

Electrical Features:

Impendence: 100Ω

Frequency range: DC to 2.0GHz

Return loss:     ≤ -20 dB to 1.0 GHz

                    ≤ 17 dB to 2.0 GHz

Insertion Loss: ≤0.1 dB to 1.0 GHz

Transmission speed:≤655Mbps

Contact current:≤ 2.5 A

Differential shielding (coupling):

                       ≥ 75 dB to 1 GHz

                       ≥ 65dB to 2 GHz

Offset (between signal contacts):

                      180° connector: ≤ 5 ps/m

                       90° connector: ≤ 25 ps/m

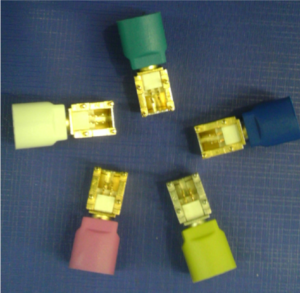

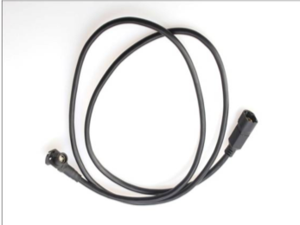

HSD LVDS cable1.pngHSD LVDS cable.pngHSD LVDS cable2.pngHSD LVDS cable3.pngHSD LVDS cablePCB.png
